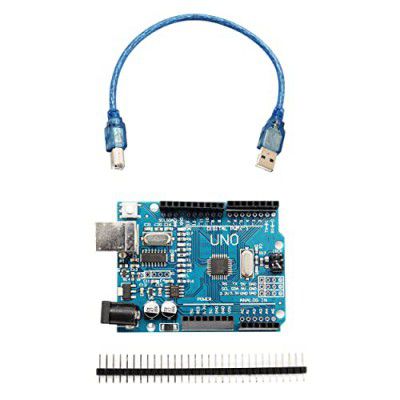

Robotbanao UNO SMD Development Board With USB cable-Combo
Offer Details
| Offer Price: | ₹379 |
|---|---|
| MRP: | ₹1499 |
| Discount: | 75% |
About Robotbanao UNO SMD Development Board With USB cable-Combo
- Robotbanao UNO R3 SMD is an opensource Embedded Development board based on Atmega328 SMD Package Microcontroller. It is widely used for developing different prototypes and projects.
- USB Programming Facilitated by the CH340G | Header Pins Included | 6 Analog Inputs | ISP Header | 32k Flash Memory | 16MHz Clock Speed | All SMD Construction | R3 Shield Compatible | 14 Digital I/O Pins (6 PWM outputs)
- Dimensions(LxWxH):7x5x1cm
- The UNO R3 SMD Development Board has multiple applications. It can be used in robot car, fingerprint door lock, home automation, security systems, etc.
- Microcontroller:ATmega328 SMD | Operating Voltage:5V | Input voltage:7-15V | Supply Voltage recommended:7-12V DC | Digital I/O Pins:14 (of which 6 provide PWM output) | Analog Input Pins:6 | DC Current per I/O Pin:40 mA | DC Current for 3.3V Pin:50 mA | Flash Memory:32 KB (ATmega328) of which 0.5 KB used by bootloader | SRAM:2 KB (ATmega328) | EEPROM:1 KB (ATmega328) | Clock Speed:16 MHz
